Hayward ColorLogic 320 Color Programs Explained: How Pool Light Program Matching Works

Color-changing swimming pool lighting is not simply about producing red, green, blue, and white light.

For replacement pool lighting, one of the most important challenges is color program compatibility.

A replacement fixture may physically fit the pool and operate at the correct voltage, but if its color sequence and dynamic lighting programs do not match the existing lighting system, the overall pool lighting experience may be inconsistent.

This is particularly important for swimming pools using Hayward ColorLogic lighting systems.

How Many Color Programs Does Hayward ColorLogic 320 Have?

In the standard Universal ColorLogic operating mode, Hayward ColorLogic 320 provides a total of 17 lighting programs:

10 fixed colors

7 color-changing light shows

The 10 fixed colors are:

Deep Blue Sea

Royal Blue

Afternoon Skies

Aqua Green

Emerald

Cloud White

Warm Red

Flamingo

Vivid Violet

Sangria

The seven dynamic light shows are:

Voodoo Lounge

Twilight

Tranquility

Gemstone

Mardi Gras

Cool Cabaret

These programs are normally advanced through power-cycling, meaning the lighting system moves to the next program when power is switched off and back on within the required time interval.

Why Color Program Matching Matters

When replacing an existing pool light, many buyers focus first on physical dimensions.

However, a successful replacement may require several different types of compatibility:

Physical Compatibility Can the fixture fit the existing installation?

Niche Compatibility Can the new light work with the existing niche or 1.5-inch fitting?

Electrical Compatibility Does the replacement light operate at the correct voltage and electrical configuration?

Color Program Compatibility Does the light follow the same fixed-color sequence and dynamic lighting programs?

Control Compatibility Can the light respond correctly to the existing switching or automation system?

These requirements should be evaluated separately.

A pool light that physically fits the installation is not automatically a complete replacement solution.

The Common Problem with Third-Party Color-Changing Pool Lights

Many RGB or RGBW pool lights can produce similar colors.

However, similar colors do not necessarily mean compatible programs.

For example, one replacement light might use a sequence such as:

Blue → Green → Red → White

while an existing lighting system may expect a completely different sequence.

When several types of lighting products are connected within the same pool environment, differences in the program sequence become immediately visible.

One underwater fixture may display blue while another fixture displays green.

Dynamic programs may also begin at different stages or transition at different speeds.

The result is a lighting system that technically works but does not look synchronized.

EVOKEPOOL ColorLogic 320 Program-Matching Solution

EVOKEPOOL can provide customized pool lighting fixtures with color programs developed to match specified Hayward ColorLogic 320 lighting sequences.

Instead of providing only an RGB pool light capable of producing similar colors, the objective is to match the required program logic as closely as possible according to the customer's existing lighting system and project requirements.

This can include matching:

Fixed-color sequence

Dynamic color-show sequence

Program switching logic

Power-cycle behavior

Multiple-light synchronization

RGB or RGBW LED configuration

PCB and control programming

This allows pool builders, distributors, service companies, and equipment brands to develop replacement lighting solutions that are better suited to existing ColorLogic-based installations.

Fixture Matching and Program Matching Are Two Different Things

This distinction is extremely important.

A complete replacement project may involve two separate engineering tasks.

1. Pool Lighting Fixture Matching

The physical fixture must match the installation environment.

This may involve:

Fixture diameter

Existing niche dimensions

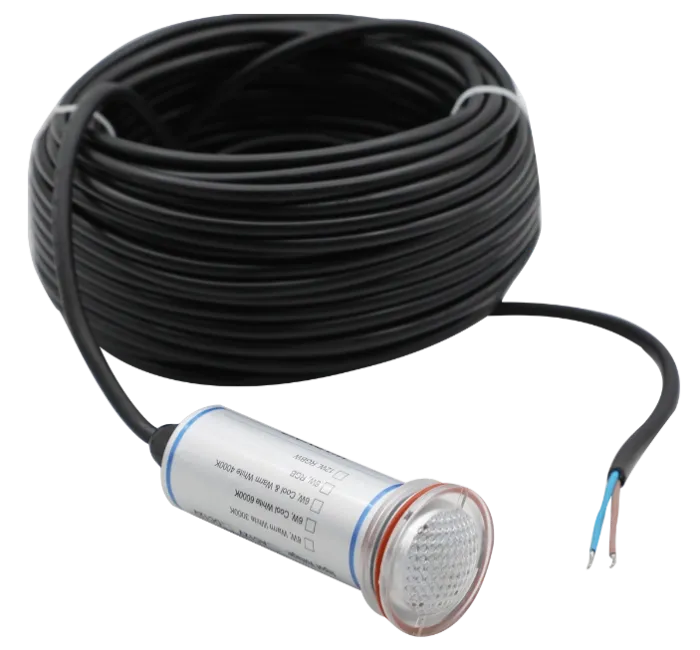

1.5-inch wall fitting

Cable outlet

Installation depth

Lens and housing structure

Pool construction type

Concrete, fiberglass, or vinyl pools

2. Color Program Matching

The electronics and control logic must then be evaluated.

This may involve:

Program order

Fixed colors

Color shows

Power-cycle timing

Synchronization

Controller behavior

RGB/RGBW output characteristics

EVOKEPOOL can work with customers on both sides of the project:

Pool Lighting Fixture + Color Program

rather than treating the replacement light as only a mechanical product.

ColorLogic 320 and OmniDirect Mode

ColorLogic 320 can also provide expanded functionality when integrated with compatible Hayward Omni automation systems.

In addition to the standard lighting programs, OmniDirect Mode can provide additional colors as well as functions such as dimming, direct color selection, and speed adjustment for lighting shows.

This means that customers evaluating a replacement solution should first identify how their existing ColorLogic 320 lights are currently controlled.

A project using simple power-cycle control may have different compatibility requirements from a project using an Omni automation system.

Questions to Ask Before Replacing a ColorLogic 320 Pool Light

Before selecting a replacement fixture, collect the following information:

Existing Hayward light model

Existing fixture size

Niche or wall fitting type

Operating voltage

Transformer information

Existing controller

Whether Omni automation is being used

Number of lights

Required color programs

Whether multiple lights must remain synchronized

Photos of the existing installation, model numbers, controller information, and wiring details can also help determine the appropriate replacement solution.

Custom Pool Lighting Solutions for North American Partners

EVOKEPOOL develops customized pool lighting solutions for distributors, pool builders, importers, service companies, and swimming pool equipment brands.

Depending on project requirements, customization can include:

Pool light fixture dimensions

Niche compatibility

LED configuration

PCB design

RGB/RGBW solutions

Color programs

Cable lengths

Housing

Lens

Controllers

Packaging and private labeling

For customers developing replacement products for the North American pool market, we can evaluate both fixture compatibility and color-program requirements.

A Complete Pool Lighting Program-Matching Solution

Modern swimming pool projects may use more than one type of lighting product.

For this reason, the same program-matching concept can potentially be extended beyond a single underwater pool fixture.

A coordinated lighting solution may include:

Pool Lights + Nicheless Lights + LED Neon Flex + Waterfall Lights + Garden Lights

When these products are developed around a coordinated lighting program, pool builders and designers can create a more consistent visual experience throughout the entire pool and backyard environment.

Instead of treating every lighting fixture as an independent product, EVOKEPOOL's goal is to help customers develop a more integrated pool lighting system.

Looking for Hayward ColorLogic 320-Compatible Pool Lighting Solutions?

If you are looking for a replacement or customized pool lighting solution designed around Hayward ColorLogic 320-style color programs, EVOKEPOOL can work with you to evaluate both the fixture and program requirements.

Send us your existing pool light model, niche or fitting information, voltage, controller, photos, and required color programs.

Our team can then evaluate a customized pool lighting fixture + color program matching solution for your project.
